A Simple Open-Loop Baseline for Reinforcement Learning Locomotion Tasks

www.dlr.de · Antonin RAFFIN · Open-Loop MuJoCo · ISL Meeting · 20.11.2023

A Simple Open-Loop Baseline for
RL Locomotion tasks

Antonin RAFFIN ( @araffin2 )
German Aerospace Center (DLR)
https://araffin.github.io/

Motivation (1/2)

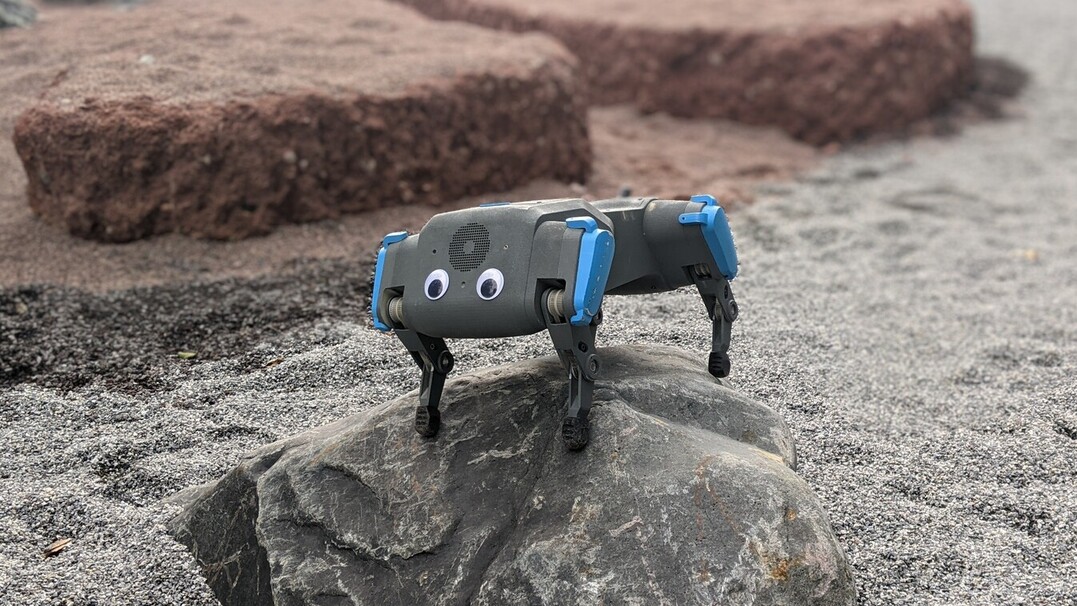

Raffin et al. "Learning to Exploit Elastic Actuators for Quadruped Locomotion" In preparation RA-L, 2023.

Motivation: ARS (2/2)

Mania et al. "Simple random search provides a competitive approach to reinforcement learning" NeurIPS 2018.

Outline

The open-loop baseline
Results in MuJoCo envs
Sim2real transfer
Discussion
Questions?

Open-Loop Oscillators

\[\begin{aligned} q^{\text{des}}_i(t) &= \textcolor{#006400}{a_i} \cdot \sin(\theta_i(t) + \textcolor{#5f3dc4}{\varphi_i}) + \textcolor{#6d071a}{b_i} \\ \dot{\theta_i}(t) &= \begin{cases} \textcolor{#0b7285}{\omega_\text{swing}} &\text{if $\sin(\theta_i(t) + \textcolor{#5f3dc4}{\varphi_i})) > 0$}\\ \textcolor{#862e9c}{\omega_\text{stance}} &\text{otherwise.} \end{cases} \end{aligned} \]

35 lines of code


								import gymnasium as gym
								import numpy as np
								from gymnasium.envs.mujoco.mujoco_env import MujocoEnv

								# Env initialization
								env = gym.make("Swimmer-v4", render_mode="human")
								# Wrap to have reward statistics
								env = gym.wrappers.RecordEpisodeStatistics(env)
								mujoco_env = env.unwrapped
								n_joints = 2
								assert isinstance(mujoco_env, MujocoEnv)
								# PD Controller gains
								kp, kd = 10, 0.5
								# Reset the environment
								t, _ = 0.0, env.reset(seed=0)
								# Oscillators parameters
								omega = 2 * np.pi * 0.62 * np.ones(n_joints)
								phase = 2 * np.pi * np.array([0.00, 0.95])

								while True:
								    env.render()
								    # Open-Loop Control using oscillators
								    desired_qpos = np.sin(omega * t + phase)
								    # PD Control: convert to torque, desired qvel is zero
								    desired_torques = (
								        kp * (desired_qpos - mujoco_env.data.qpos[-n_joints:])
								        - kd * mujoco_env.data.qvel[-n_joints:]
								    )
								    desired_torques = np.clip(desired_torques, -1.0, 1.0)  # clip to action bounds
								    _, reward, terminated, truncated, info = env.step(desired_torques)
								    t += mujoco_env.dt

								    if terminated or truncated:
								        print(f"Episode return: {float(info['episode']['r']):.2f}")
								        t, _ = 0.0, env.reset()
